Specification:
-
Faucet Type: 3 way mixer tap
-
Finish: Matt Black
-
Installation Type: Deck Mounted
-
Construction Materiel: Solid Brass
-
Base cover diameter: 1.73" (can cover the hole diameter 1.73")
-
Flow Rate: 1.6 GPM (gallons-per-minute) base on RO Water system supply
-
Faucet installation: 1 hole deck mounted
-
Number of Handles : 2
-
Spout Type: Swivel Spout Swivel: 360 degree
-
Valve Type: Ceramic Disc Valve
|
Filter Water 3 Way Faucet
|
|
|
|
|
|
|
|
|
Cold&hot Mixer water and filtered water flow in individual channel
|
|
|
Solid Brass Faucet
|
|
|
|
|
|
2KGS
|
|
Qty./CTN
|
6Pcs
|
|
G.W/ CTN
|
15KGS
|
Carton Size
|
47.5x47x29CM
|
Guarantee
|
5 Years
|
|
MOQ
|
50PCS
|
How the 3 way faucet working

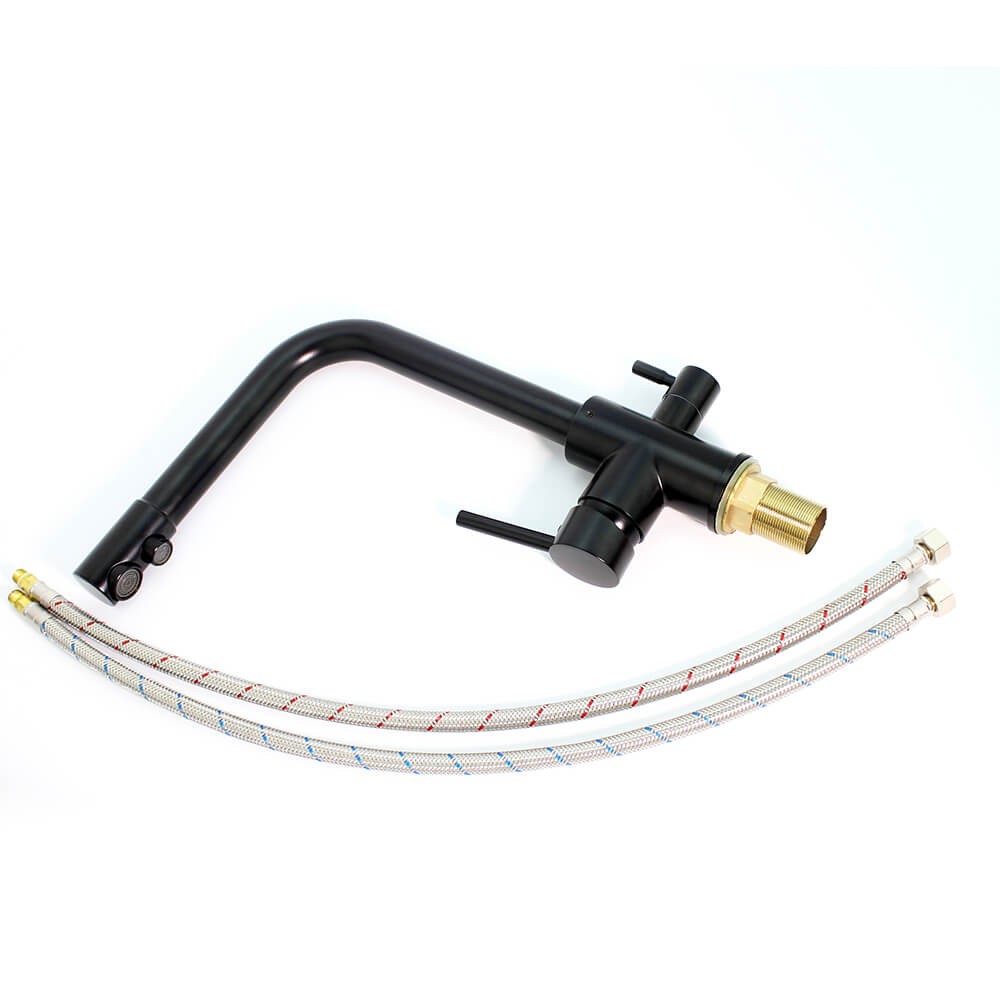

Comparing to normal kitchen faucets, the Triflow Taps is equipped with two separate internal channel , the main chanel is still used as usual for mixer faucet water which is kept the desired temperature via a ceramic mixer valve in the faucet, there is war4m and cold water connection, in the second channel, on the other handle, the filter water flow, this is connected directly to OS and therefore the two channel's water do not contact for each other, the three way faucet with two separate levers for pured water and mixer water. and the three way faucets is connected via two flexible hose and pured water hose or quickly adapter.the two flexible hoses (normally blue and red marked ) conected to hot and cold water , the pured water hose or quickly adapter is connected to the osmosis system. The faucet can replace your older faucet by its hole, it is easy to replace and conviently for working
The DOGO modern 3 way faucet, high curved and classic design, in connection with osmosis water system , is a perfect solution for your kictchen water, the Triflow Taps is made from chrome-plated brass and is anti -rust and pollution free. the water was controlled by two lever when flow through Triflow Taps , the small lever is used for filter water which connected to OS water system by purified water hose. with which you can tap on or off freshly fitered osmosis water from RO water system at any time.
And the other lever is used for cold and hot water mixer valve which can be closed and mixed directly. a high-quality joint bearing ensures optimal resistandce and targetd handling.
Due to the separeted lines design, it is also possible to obtain both type water at the same time. it is an elegant and practical addition to any osmosis system , especially for larger households and open-plan kicthens .
