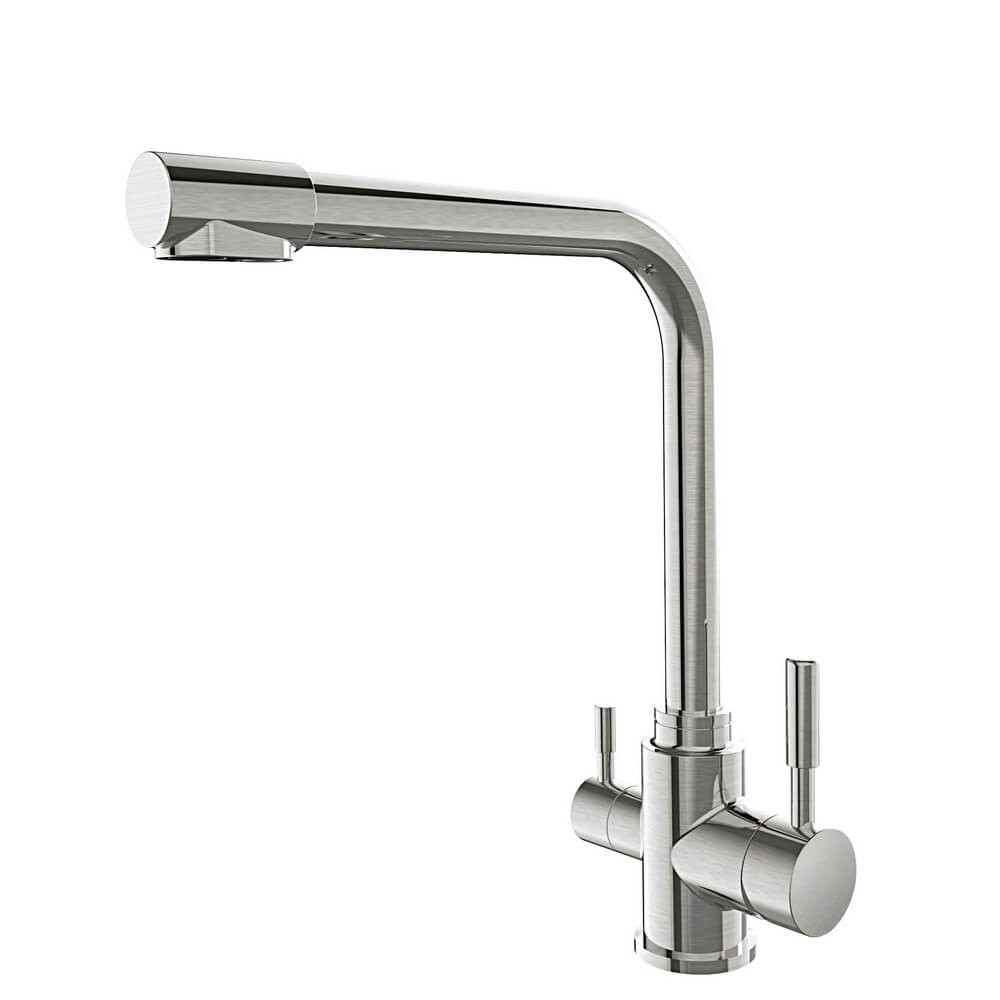

304 Stainless steel 3 way faucet

Feature:

1. DOGO 304 Stainless steel 3 Way faucet dispenser cold, hot water and filtered water in individual channel, avoid filtered water polluted by unfiltered water
2. Save your kitchen space, Just one faucet for your kitchen sink, no need extra filter water tap,
3. Eesy to replace: the installing hole is same a normal mixer faucet, it is easy to replace your existing faucet
4. Ceramic valve cartridge, passed 500000 cycling life test
5. High quality chrome surface , salt spray testing more than 48Hrs
6. Every faucet have to pass high and low pressure water testing before packed to insure all faucets qualified,no fatal fault defective
7. Modern and classic design in chrome finished

8. Lead free material

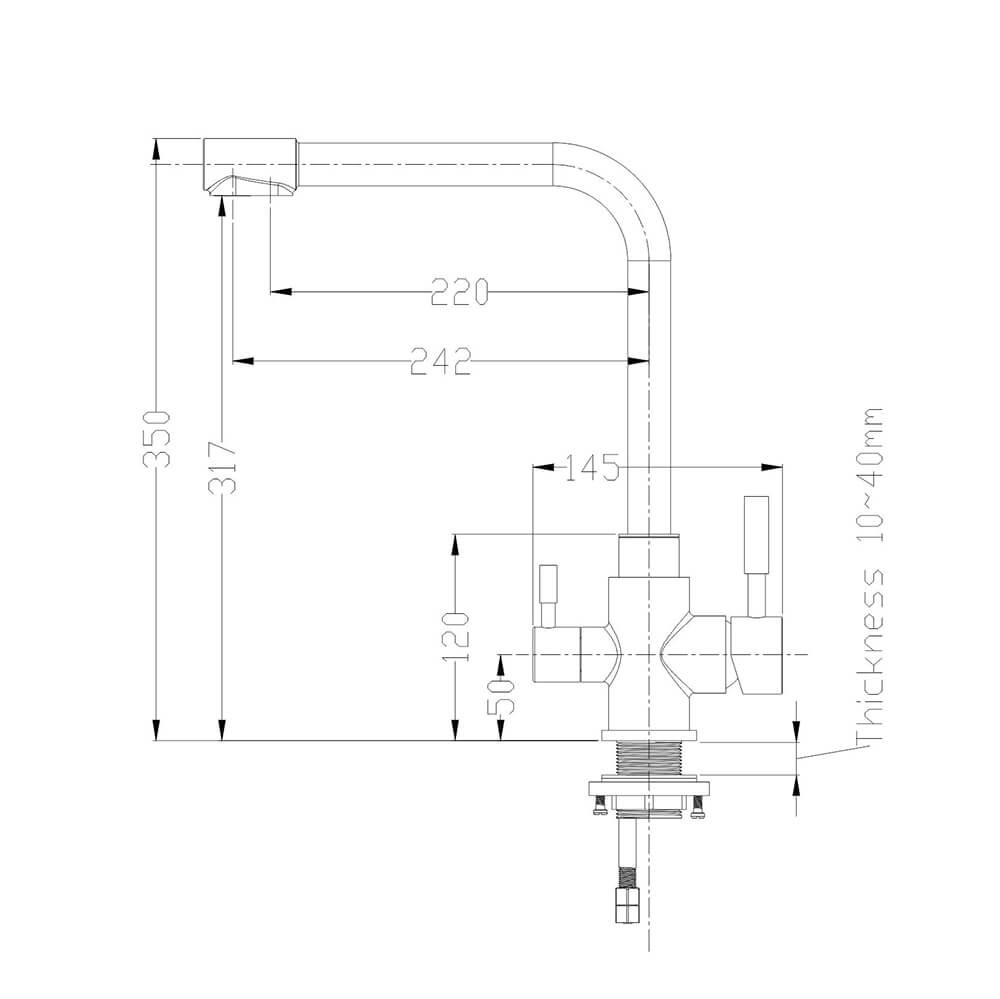

Specification

304 Stainless steel 3 way faucet
	Item No.	DG-S3301
	Color	SS Satiin Brushed
	Function	Cold&hot Mixer water and filtered water flow in individual channel
	Material	Lead free 304 stainless steel
	Spout Fixed	360 ° swivel
	N.W	1.5KGS
	Qty./CTN	6Pcs
	G.W/CTN	15KGS
	Carton Size	47.5x47x29CM
	Guarantee	5 Years
	MOQ	50PCS

How does DOGO 304 stainless steel 3 way faucet working

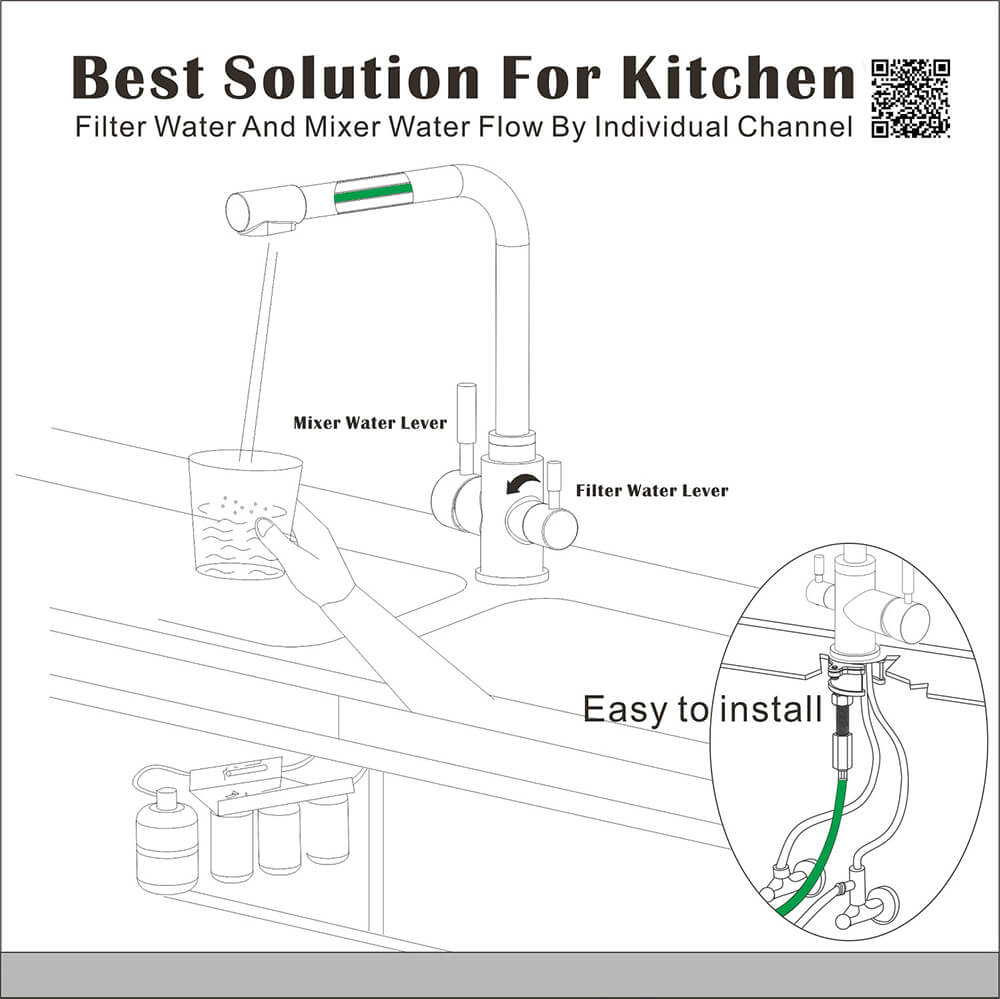

Comparing to normal faucets, the 304 stainless steel 3 Way Filter Water Taps is equipped with two separate internal channel, the main chanel is still used as usual for mixer faucet water which is kept the desired temperature via a ceramic mixer valve in the faucet, there is warm and cold water connection, in the second channel, on the other handle, the filter water flow, this is connected directly to OS and therefore the two channel's water do not contact for each other, the three way faucet with two separate levers for pured water and mixer water.

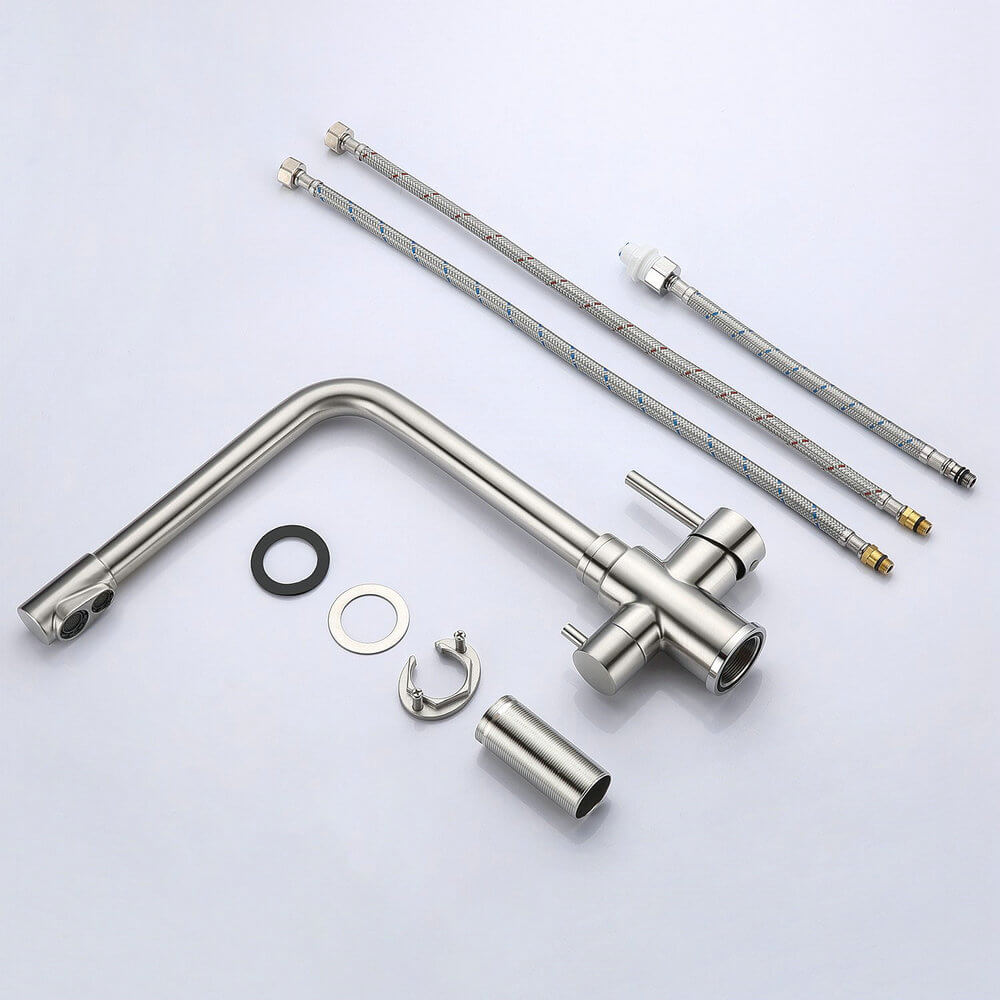

Three way faucets is connected via two flexible hose and pured water hose or quickly adapter.the two flexible hoses (normally blue and red marked) conected to hot and cold water, the pured water hose or quickly adapter is connected to the osmosis system. The faucet can replace your older faucet by its hole, it is easy to replace and conviently for working.

The DOGO modern 3 way faucet, high curved and classic design, in connection with osmosis water system , is a perfect solution for your kictchen water, the faucet is made from chrome-plated brass and is anti -rust and pollution free. the water was controlled by two lever when flow through faucet, the small lever is used for filter water  which connected to OS water system by purified water hose. with which you can tap on or off freshly fitered osmosis water from RO water system at any time.

And the other lever is used for cold and hot water mixer valve which can be closed and mixed directly. a high-quality joint bearing  ensures optimal resistandce and targetd handling.

Due to the separeted lines design, it is also possible to obtain both type water at the same time. it is an elegant and practical addition to any osmosis system, especially for larger households and open-plan kicthens.
